2.5GBase-T Discrete Lan Magnetics

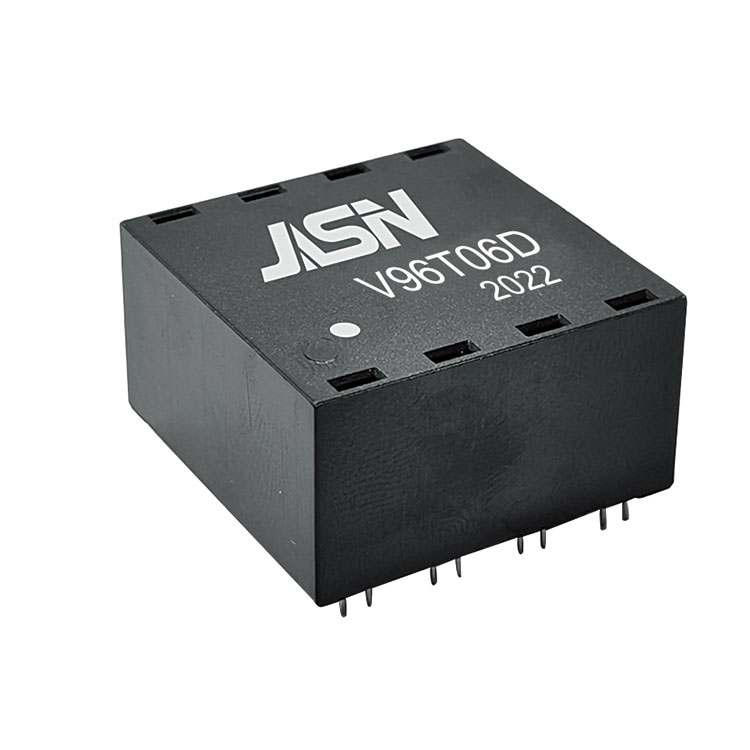

Gratus es venire ad officinam JASN ut emendum novissimam venditionem, vilis pretii, et qualitatem 2.5GBase-T Discreti Lan Magnetici. Expectamus cooperari cum you. This V96T06D est 2.5G Base-T Quad Port Magnetics Module.

Exemplar: V96T06D
Model:V96T06D

Mitte Inquisitionem

PDF Download

Scias potes emere nativus2.5GBase-T Discrete Lan Magneticsfrom JASN. Expectamus cooperantem tibi, si plura scire vis, modo consulere potes, respondebimus tibi in tempore!


Feature


Obsequi ROHS requisitis.
Parere cum IEEE802.3bz
Temperatura operans range: 0℃to+70℃.
Repono temperatus range: -25„ƒ ad +125℃.

Electrical Specifications @ 25℃



OCL:

150uH Min. @100KHz/0.1V

Hi-Pot:

1500Vrms

Turn Ratio:

1:1±2%

LK:

0.5uH Max @100KHz/0.2V

Cw/w*

35pF Max @100KHz/0.2V

D.C.R:

1.0 olim Max



Damnum insertio:

1-100MHz

100-200MHz

-1.0dB Max

-2dB Max



Redi damnum:

1-40MHz

40-250MHz

-16dB Min

-16+10log（f/40）Min



Cross Talk:

1-200MHZ：:-25dB Min

CMRR:

1-200MHZ：-20dB Min
