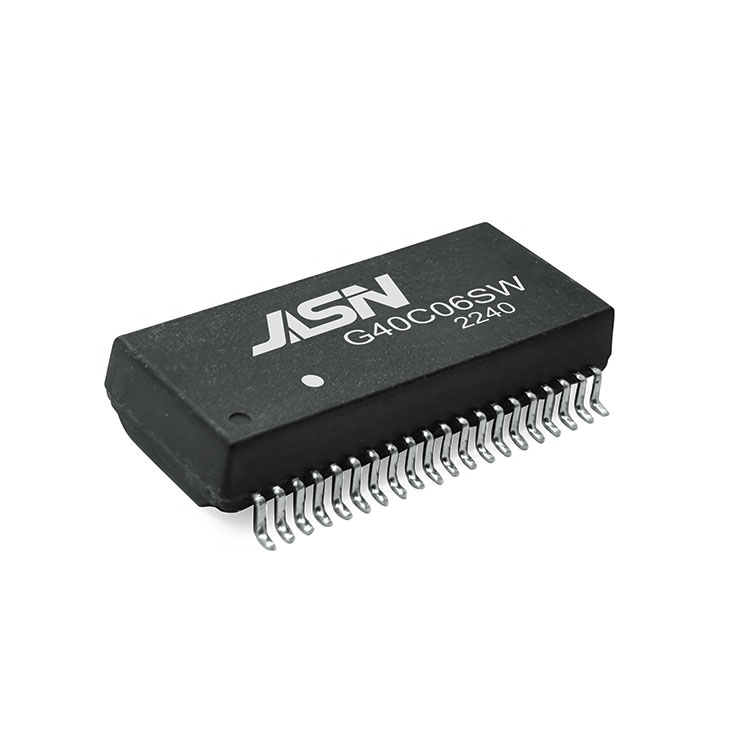

Solitudo Transformer
  • Solitudo Transformer - 0 Solitudo Transformer - 0

Solitudo Transformer

JASN unus est e clarissimis fabricatoribus ac praebitoribus Sinarum Isolationis Transformator. Nostra officina specialist in fabricandis T1/E1 Transformer.

Exemplar: H40C06SW

Model:H40C06SW

Mitte Inquisitionem

PDF Download

Qualitas altusSolitudo Transformerin Oriente factum. JASN est aSolitudo Transformerfabrica et elit in Sinis.


Feature


Obsequi ROHS requisitis.
Temperatura operans range: -40â ad +85℃.
Repono temperatus range: -40â ad +105℃.

Electrical Specifications @ 25℃



OCL:

Pri= 1.5mH Typ. @100KHz/0.05V

OCL:

Pri= 600uH Min @-40℃. @100KHz/0.05V

Choke OCL:

30uH Typ. @100KHz/0.05V

Hi-POT :

1500Vrms

Turn Ratio:

TX=1:2±3% RX=1:1±3%

LK:

Pri= 0.5uH Max @100KHz/0.05V

Cw/w*

35PF Max @100KHz/0.05V

D.C.R:

Pri= 0.8 olim Max

Crosstalk:

-60dB Typ @0.5-5MHz
