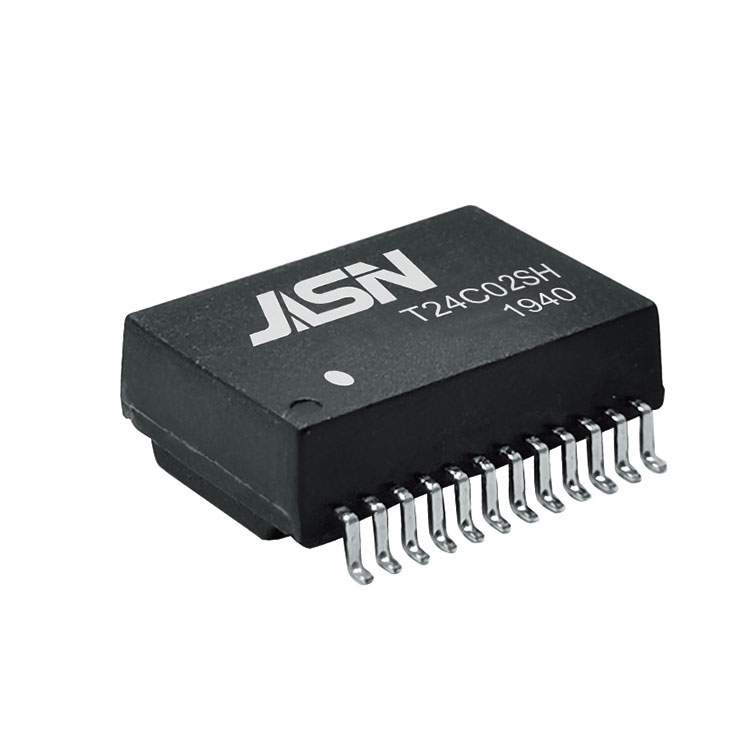

1000Base-T Discrete Lan Magnetics
1000Base-T Discrete Lan Magnetics
Gratus es venire ad officinam JASN ut emendum novissimam venditionem, vilis pretii, et qualitatem 1000Base-T Discreti Lan Magnetici. Expectamus cooperari cum you.This G24C02SH potest stare pro 5000VAC test.
Exemplar:G24C02SH
Model:G24C02SH
Mitte Inquisitionem
PDF Download
Certum emere potes1000Base-T Discrete Lan Magneticsex officina JASN et tibi optimam post venditionem praestabimus et opportune partus offeremus.
1000Base-T Discrete Lan Magnetics
Feature
Obsequium IEEE 802.3ab vexillum.
Parere cum RoHS requisitis.
Temperatura operans: 0â ad +70â
Repono temperatus range: -25 ad +105â.
Electrical Specifications @ 25â
|
OCL: |
350uH Min. @100KHz/0.1V apud 8mA DC Bias |
||||
|
Hi-POT : |
4000VDC/1mA/2S |
||||
|
Turn Ratio: |
1:1±3% |
||||
|
LK: |
0.5uH Max @100KHz/0.2V |
||||
|
Cw/w* |
35PF Max @100KHz/0.2V |
||||
|
D.C.R: |
1.2 olim Max |
||||
|
Damnum insertio: |
1-100MHz: -1.0dB Max |
||||
|
Cross Talk: |
1-100MHz: -30dB Min |
||||
|
Redi damnum: |
1-30MHz |
40MHz |
50MHz |
60-80MHZ |
80-100MHZ |
|
-18dB Min |
-14.4dB Min |
-13.1dB Min |
-12dB Min |
-10dB Min |
|
