1000Base-T Signum Transformer

IASN ut professionalis Transformator fabricator, certificare potes ut 1000Base-T Transformatorem ex officina nostra emere ac tibi optimam post venditionem operae et opportunam traditionem tibi offeremus. G24C22SQ 4PPoE 60W PoE optionem alere potest.

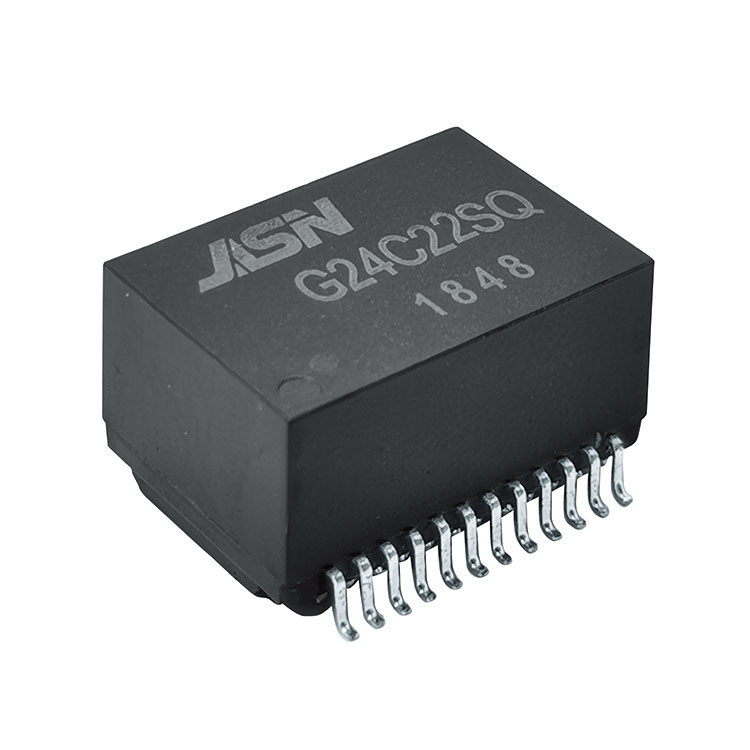

Exemplar:G24C22SQ

Model:G24C22SQ

Mitte Inquisitionem

PDF Download

depictio producti

JASN is1000Base-T Signum Transformerartifices et instructores in Sina quis Lupum1000Base-T Signum Transformer. Praebere possumus munus professionalem et pretium tibi melius. Si interesse in1000Base-T Signum Transformerproducta, pete nobiscum. Certum est nos sequi qualitatem, pretium conscientiae, servitio dicatum.

Feature

Obsequium IEEE 802.3ab&802.3at vexillum.
Apta ad applicationes finis-span PoE cum 720mA currentis capacitatis.
Parere cum RoHS requisitis.
Temperatura operans range: -40â ad +85â.
Repono temperatus range: -40â ad +125â

Electrical Specifications @ 25â

OCL:	350uH Min. @100KHz/0.1V apud 24mA DC Bias
Hi-POT :	1500Vrms
Turn Ratio:	1:1±3%
LK:	0.5uH Max @100KHz/0.2V
Cw/w*	35pF Max @100KHz/0.2V
D.C.R:	Secundarium: 0.8 olim Max
	Imbalance: ±0.065 olim Max
Damnum insertio:	1-100MHz: -1.2dB Max
Cross Talk:	30MHz		60MHz		100MHz
	-40dB Min		-35dB Min		-30dB Min
Redi damnum:	1-30MHz	30-60MHz		60-80MHZ
	-16dB Min	10-20* log (f/60)dB Min		-10dB Min
