1000Base-T Transformer Network

Sinae Jansum Electronics multis inceptis domesticis et externis feliciter fuit ut provectae 1000Base-T Network Transformer, technicae subsidii et post servitutem venditionem praestantior. G24C03S occurrit IEEE 802.3ab et involucrum SMD habet.

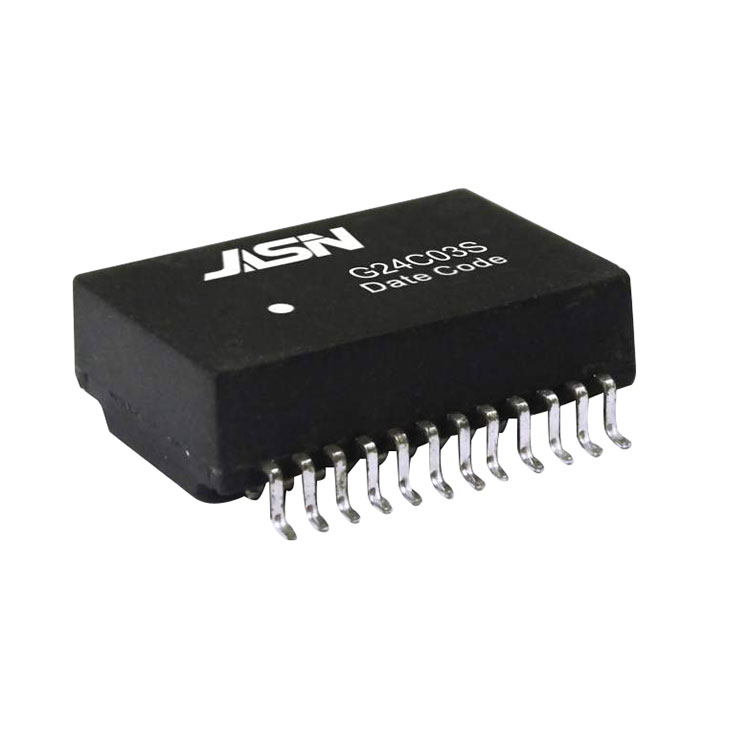

Exemplar:G24C03S

Model:G24C03S

Mitte Inquisitionem

PDF Download

depictio producti

Qualitas altus1000Base-T Transformer Networkoffertur a fabrica Sinarum IASN. Buy1000Base-T Transformer Networkquod est optimum directe parvo pretio.

Feature

Obsequium IEEE 802.3ab vexillum.
Parere cum RoHS requisitis.
Temperatura operans: 0â ad +70â

Electrical Specifications @ 25â

Inductione Ls (Primary)	350uH Min. @100KHz/0.1V apud 8mA DC Bias
Convertere Ratio (Primary): (Secundaria);	1CT:1CT±2%
Verticitas (primaria): secundae)	Per Schematic
Damnum insertio:	1-100MHz: -1.0dB Max
Redi Lossï¼	1-30MHz	40MHz	50MHz	60-80MHZ
	-18dB Min	-14.5dB Min	-13.1dB Min	-12dB Min
Cross Talk (inter channels)	30MHz	60MHz	100MHz
	-45dB Min	-40dB Min	-35dB Min
CMRR;	-35dB Min@0.1-100MHz
Hi-pot (Primary): (Secunda)	1500Vrms 60s
