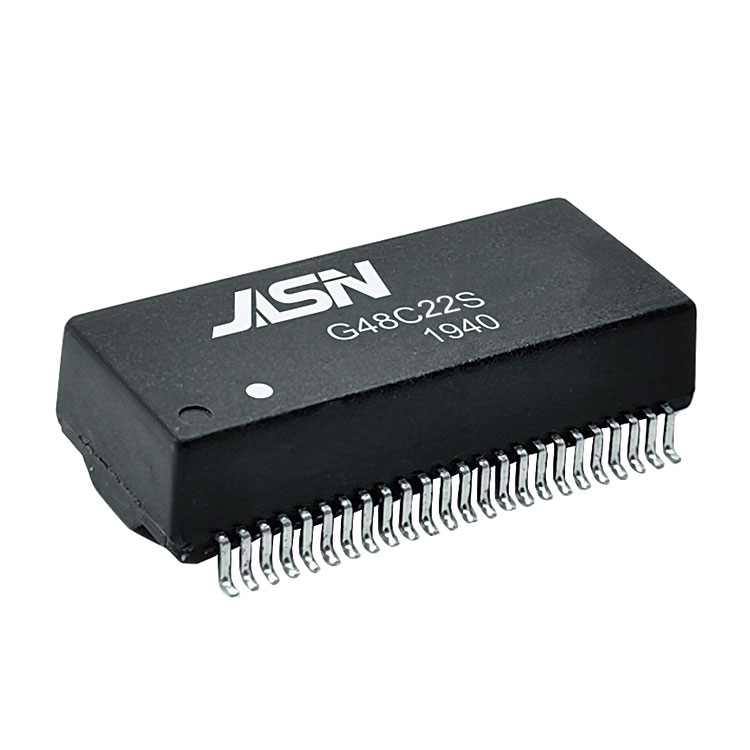

1000M Aer Transformer
Certum esse potes ut 1000M Transformator Aerneti ex JASN officina emere possit et optimam post venditionem tibi offeremus et opportune partus offeremus. PN G48C22S celeritatem 1000M ratam praebet et involucrum SMD habet.
Exemplar:G48C22S
Exemplar:G48C22S
Model:G48C22S
Mitte Inquisitionem
PDF Download
Scias quiescere potes ut 1000M Ethernet Transformer ex JASN nativus emere possit. Expectamus cooperantem tibi, si plura scire vis, modo consulere potes, respondebimus tibi in tempore!
Feature
Obsequium IEEE 802.3ab vexillum.
Parere cum RoHS requisitis.
Temperatura operans range: 0â ad +70â.
Repono temperatus range: -25 ad +105â.
Electrical Specifications @ 25â
|
OCL: |
350uH Min. @100KHz/0.1V apud 8mA DC Bias |
||||||
|
Hi-POT : |
1500Vrms |
||||||
|
Turn Ratio: |
1:1±3% |
||||||
|
LK: |
0.5uH Max @100KHz/0.2V |
||||||
|
Cw/w* |
35PF Max @100KHz/0.2V |
||||||
|
D.C.R: |
1.2 olim Max |
||||||
|
Damnum insertio: |
1-100MHz: -1.0dB Max |
||||||
|
Cross Talk: |
1-100MHz: -30dB Min |
||||||
|
CMRR |
1-30MHZ |
30-60MHZ |
60-100MHZ |
||||
|
-42dB Min |
-37dB Min |
-33dB Min |
|||||
|
Redi damnum: |
1-30MHz |
40MHz |
50MHz |
60-80MHZ |
80-100MHZ |
||
|
-18dB Min |
-14.4dB Min |
-13.1dB Min |
-12dB Min |
-10dB Min |
|||
