1000M Magnetics Modules
Certum esse potes ut 1000M Magneticorum Modulorum ex IASN officina emere, tibi optimam post venditionem et opportunam traditionem offeremus. G48C04S compatitur cum RoHS cacumine temperatus refluxus 260C, seu processus solidi undarum 260+/-5C pro 10 Sec.

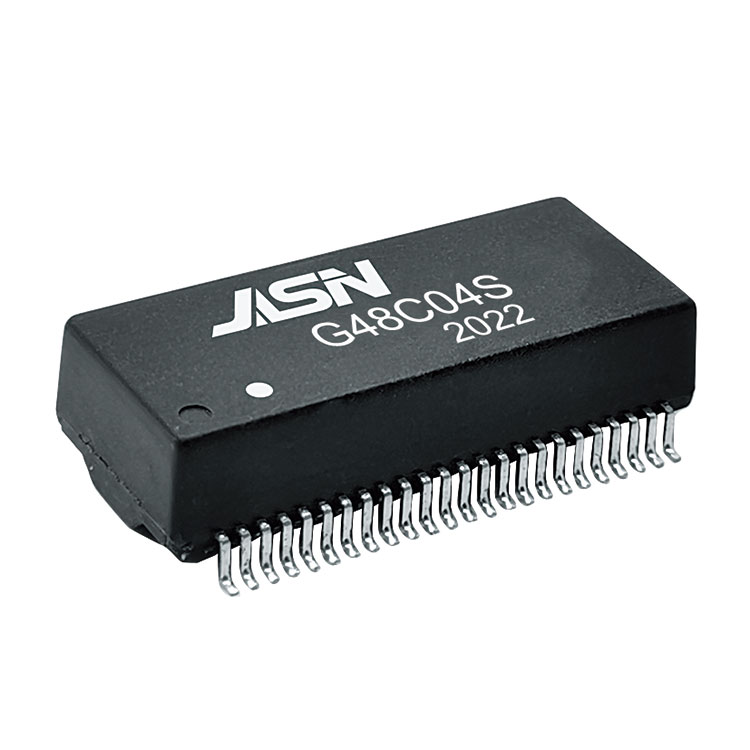

Exemplar:G48C04S
Model:G48C04S
Mitte Inquisitionem
PDF Download
Ut sit amet1000M Magnetics Modulesmanufacturer, vos can quiescamus emere1000M Magnetics Modulesex officina JASN et tibi optimam post venditionem praestabimus et opportune partus offeremus.
Feature
Obsequium IEEE 802.3 vexillum.
Obsequi ROHS requisitis.
Temperatura operans range: 0â ad +70â.
Repono temperatus range: -25 ad +125â.
Electrical Specifications @ 25â
|
OCL: |
350uH Min. @100KHz/0.1V apud 8mA DC Bias |
||||
|
Hi-POT : |
1500Vrms |
||||
|
Turn Ratio: |
1:1±3% |
||||
|
LK: |
0.5uH Max @100KHz/0.2V |
||||
|
Cw/w* |
35PF Max @100KHz/0.2V |
||||
|
D.C.R: |
1.2 olim Max |
||||
|
Damnum insertio: |
1-100MHz: -1.0dB Max |
||||
|
Cross Talk: |
1-100MHz: -30dB Min |
||||
|
Redi damnum: |
1-30MHz |
40MHz |
50MHz |
60-80MHZ |
80-100MHZ |
|
-18dB Min |
-14.4dB Min |
-13.1dB Min |
-12dB Min |
-10dB Min |
|
