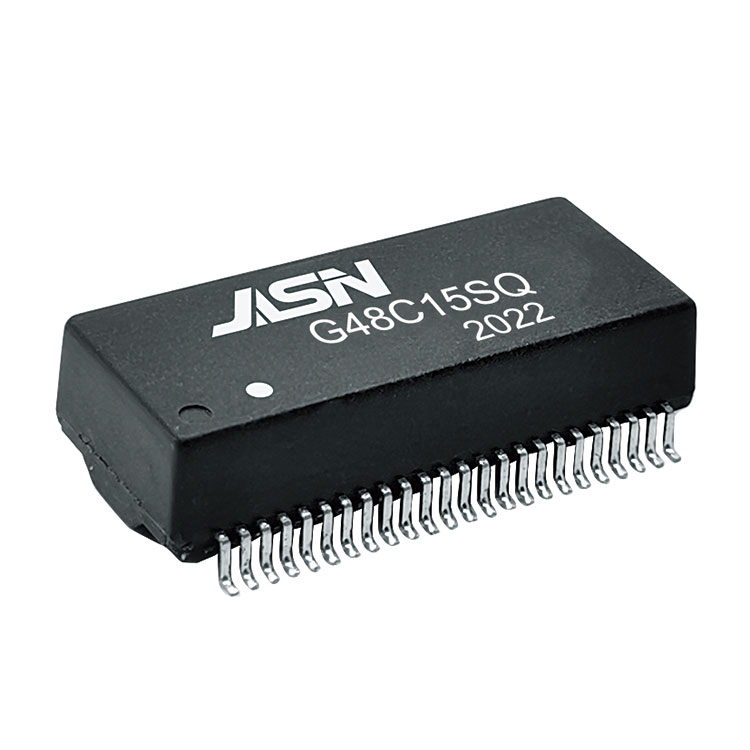

1000M signum Transformer
Certum esse potes ut 1000M Transformator ex JASN officinas emeret et tibi optimam post venditionem praestabimus et opportuna traditio. G48C15SQ est canalis Dualis et productum optio PoE.
Exemplar:G48C15SQ
Model:G48C15SQ
Mitte Inquisitionem
PDF Download
Gratus es venire ad officinam IASN ut emendum novissimam venditionem, vili pretio, et qualitatem1000M signum Transformer. Expectamus cooperante.
Feature
Obsequens IEEE 802.3ab&802.3bt vexillum.
Apta ad applicationes finis-span PoE cum 720mA currentis capacitatis.
Parere cum RoHS requisitis.
Temperatura operans range: -40â ad +85â.
Repono temperatus range: -40â ad +125â
Electrical Specifications @ 25â
|
OCL: |
350uH Min. @100KHz/0.1V apud 8mA DC Bias |
||||||
|
280uH Min. @100KHz/0.1V apud 21mA DC Bias |
|||||||
|
Hi-POT : |
6000V Surge 10/700us |
||||||
|
Turn Ratio: |
1:1±3% |
||||||
|
LK: |
0.5uH Max @100KHz/0.2V |
||||||
|
Cw/w* |
35pF Max @100KHz/0.2V |
||||||
|
D.C.R: |
1.2 olim Max |
||||||
|
Damnum insertio: |
1-100MHz: -1.0dB Max |
||||||
|
Cross Talk: |
30MHz |
60MHz |
100MHz |
||||
|
-40dB Min |
-35dB Min |
-30dB Min |
|||||
|
Redi damnum: |
1-30MHz |
40MHz |
50MHz |
60-80MHZ |
80-100MHZ |
||
|
-18dB Min |
-14.4dB Min |
-13.1dB Min |
-12dB Min |
-10dB Min |
|||
