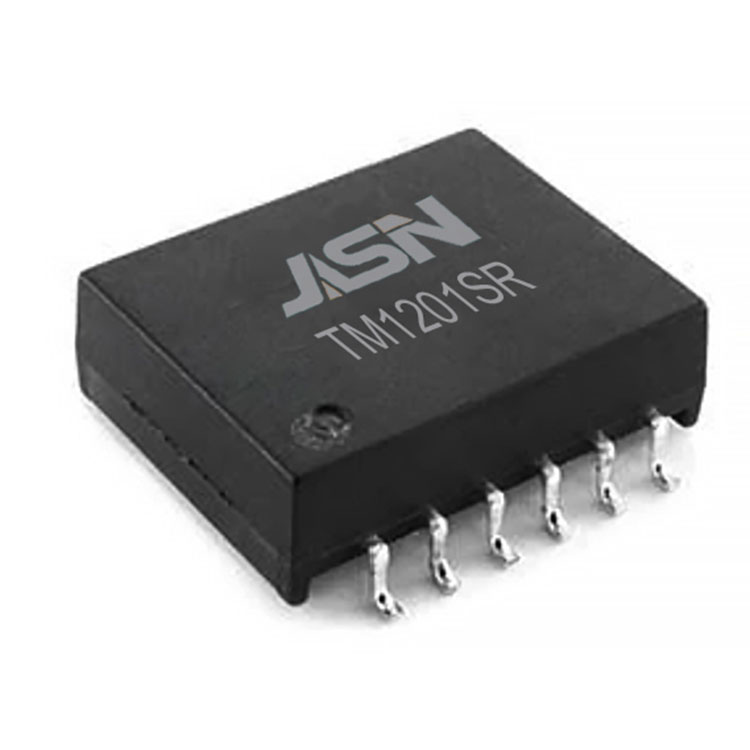

Dual Channel BMS Transformer

OCL:

150uH~ 450uH. @100KHz/0.1V (-40C ad+125C)

Hi-Pot:

4300VDC 1mA 60Sec

Vertit Rationem:

1:1±2%

Lacus Inductance ::

0.5uH Max @100KHz/0.1V

DCR:

0.45ohm Max. @Transformer latus

0.85ohm Max.@CM latus suffocat

Damnum insertio:

-0.25dB Max 4MHz

Redi damnum:

-22dB Min @4MHz (Z out= 100Ω)

CMRR:

-35dB Min @1200MHz

Design Construction:

Nulla confirmatio per IEC62477-1, IEC60664- 1.IEC62368-1;

Opus intentione usque ad 1600VDC;Creepage distantiam 10mm, spatium Clearance 14mm.

Pollutio Gradus , Circulus Materialis CTI ;Overvoltage Categoria , usque ad 2km supra mare level.UL pendente.
