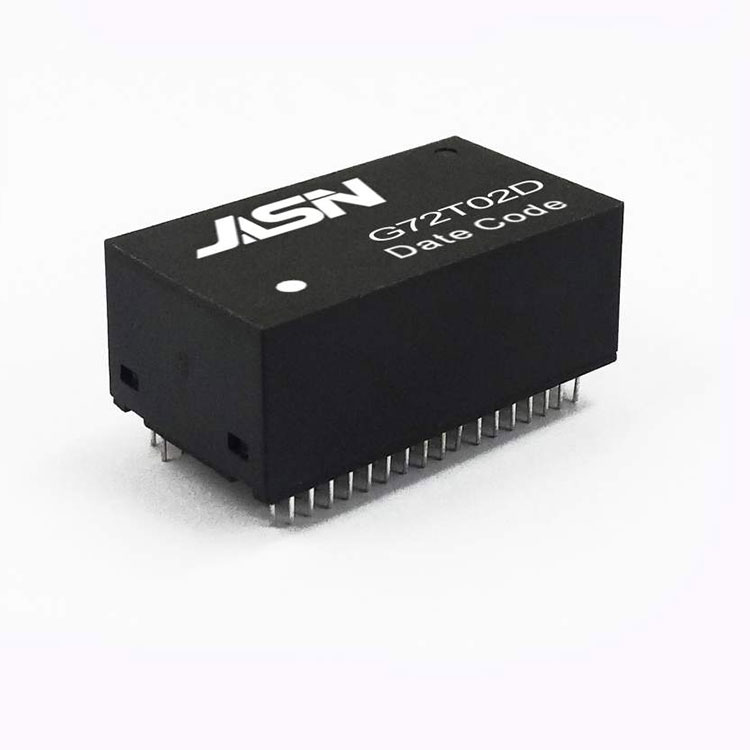

Aer Transformer
  • Aer Transformer - 0 Aer Transformer - 0

Aer Transformer

Jansum Aer Transformator perfectas functiones et praestantiores effectus offert. PN G72T02D involucrum TANTUM est et quattuor portus applicationem sustinent.

Exemplar:G72T02D

Model:G72T02D

Mitte Inquisitionem

PDF Download

Jasn est Sinis manufacturer & elit, qui maxime producitAer Transformerphiribus annis usus. Spero te aedificare negotium necessitudinem.


Feature


Obsequium IEEE 802.3 vexillum.
Obsequi ROHS requisitis.
Temperatura operans range: 0℃ ad +70℃.
Repono temperatus range: -25„ƒ ad +125℃.


Electrical Specifications @ 25℃



OCL:

350uH Min. @100KHz/0.1V apud 8mA DC Bias

Hi-POT :

1500Vrms

Turn Ratio:

1:1±3%

LK:

0.5uH Max @100KHz/0.2V

Cw/w*

120PF Max @100KHz/0.2V

D.C.R:

1.4 olim Max

Damnum insertio:

1-100MHz: -1.0dB Max

Cross Talk:

1-100MHz: -30dB Min



Redi damnum:

1-30MHz

40MHz

50MHz

60-80MHZ

80-100MHZ

-18dB Min

-14.4dB Min

-13.1dB Min

-12dB Min

-10dB Min
