GIGABIT Discrete Lan Magnetics
JASN princeps professionalis Sinarum GIGABIT Discretum Lan Magneticorum fabricare cum magno qualitate et rationabili pretio. Welcome to contact us. PN G24P10S parere cum RoHS requisitis est.

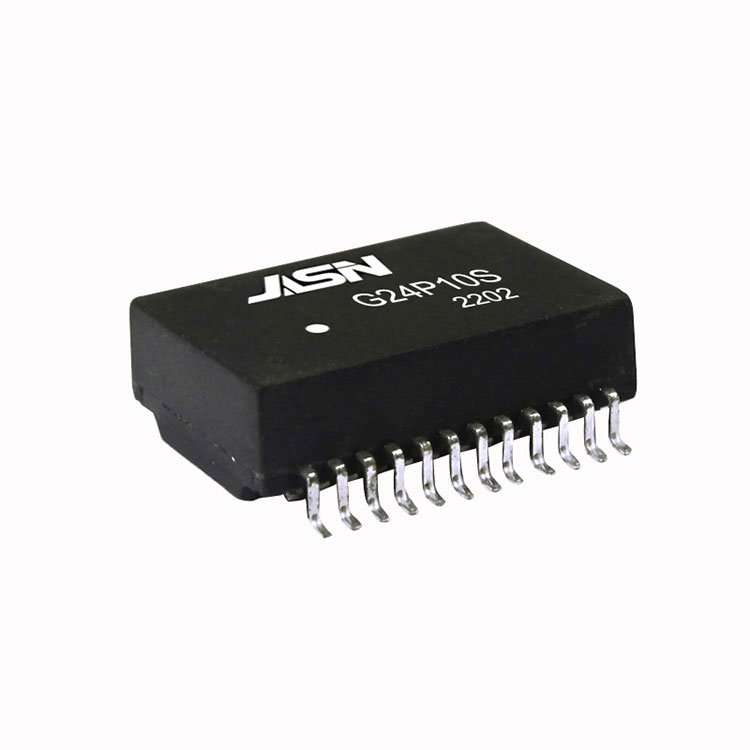

Exemplar:G24P10S
Model:G24P10S
Mitte Inquisitionem
PDF Download
JASNGIGABIT Discrete Lan Magneticshabere proprium consilium & practica perficientur & competitive pretium, pro magis notitia inGIGABIT Discrete Lan Magneticsplacet liberum contactus nos.
Feature
Obsequium IEEE 802.3ab vexillum.
Parere cum RoHS requisitis.
Temperatura operans range: 0â ad +70â.
Repono temperatus range: -25 ad +105â.
Electrical Specifications @ 25â
|
OCL: |
350uH Min. @100KHz/0.1V |
|||
|
Hi-POT : |
1500Vrms |
|||
|
Turn Ratio: |
1:1±3% |
|||
|
LK: |
0.5uH Max @100KHz/0.2V |
|||
|
Cw/w* |
28PF Max @100KHz/0.2V |
|||
|
D.C.R: |
1.2 olim Max |
|||
|
Damnum insertio: |
1-100MHz: -1.1dB Max |
|||
|
Cross Talk: |
30MHz: -35dB Min |
|||
|
60-100MHz: -32dB Min |
||||
|
Redi damnum: |
1-30MHz |
40MHz |
50MHZ |
60-100MHZ |
|
-18dB Min |
-14.4dB Min |
-13.1dB Min |
-12dB Min |
|
|
DCMR: |
30MHz |
60MHz |
100MHz |
|
|
-40dB Min |
-35dB Min |
-30dB Min |
||
