GIGABIT Magnetics Modules
Jansum Electronics est Sinarum fabrica & supplementum, qui GIGABIT Modulos Magneticos cum multis experientiae annis maxime producit. G50C01SQ occurrit IEEE 802.3ab ac subsidia PoE application. Grata emere productum ab JASN.

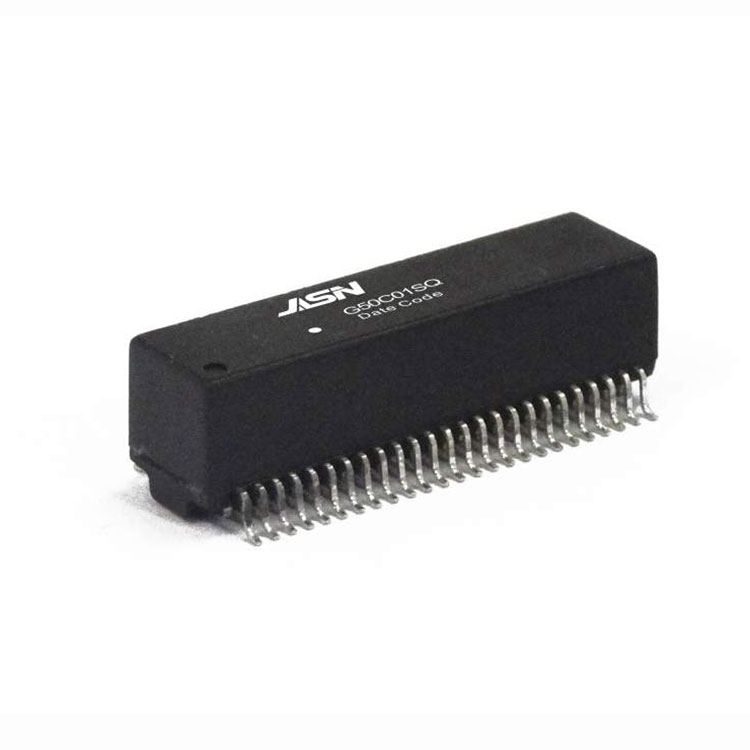

Exemplar:G50C01SQ
Model:G50C01SQ
Mitte Inquisitionem
PDF Download
Jasn est princeps professionalis SinisGIGABIT Magnetics Modulesmanufacturer magna qualitas et rationabile pretium. Welcome to contact us.
Feature
Obsequium IEEE 802.3at vexillum.
Obsequi ROHS requisitis.
Idonea ad finem-span POE applicationes cum 720mA currentis capacitatis.
Temperatus operans range:-40â ad +85â.
Repono temperatus range: -40â ad +125â.
Electrical Specifications @ 25â
|
OCL: |
350uH Min. @100KHz/0.1V apud 8mA DC Bias 200uH Min. @100KHz/0.1V apud 18mA DC Bias |
||||
|
Hi-POT : |
1500Vrms |
||||
|
Turn Ratio: |
1:1±3% |
||||
|
LK: |
0.5uH Max @100KHz/0.2V |
||||
|
Cw/w* |
35PF Max @100KHz/0.2V |
||||
|
D.C.R: |
1.2 olim Max |
||||
|
Damnum insertio: |
1-100MHz: -1.0dB Max |
||||
|
Cross Talk: |
1-100MHz: -30dB Min |
||||
|
Redi damnum: |
1-30MHz |
40MHz |
50MHz |
60-80MHZ |
80-100MHZ |
|
-18dB Min |
-14.4dB Min |
-13.1dB Min |
-12dB Min |
-10dB Min |
|
