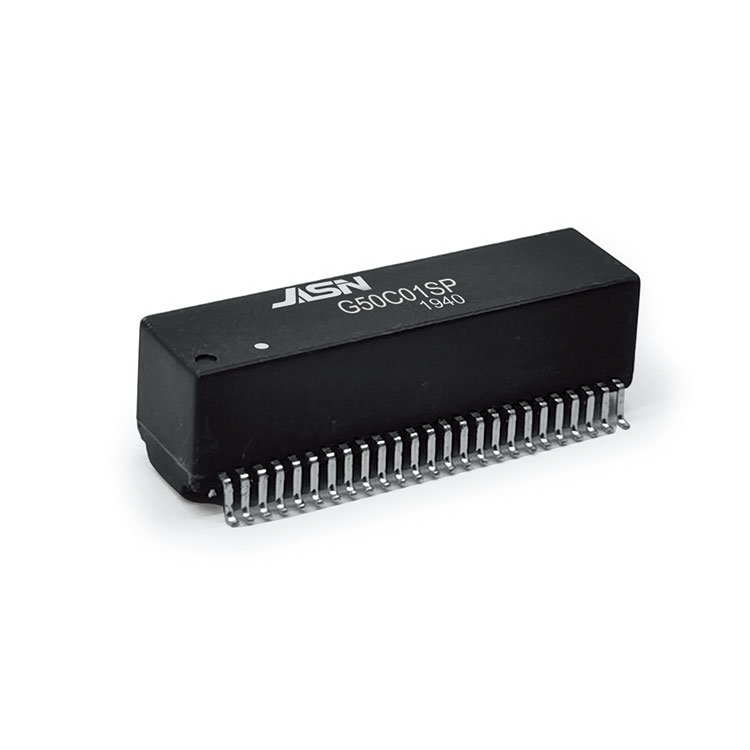

GIGABIT Network Transformer
Certum esse potes ut GIGABIT Network Transformer emere ab officina IASN et optimam post venditionem tibi praestabimus et opportuna traditio. PN G50C01SP aptum applicationibus cum 720mA currentis capacitatis ad finem-spaniae PoE.
Exemplar:G50C01SP
Model:G50C01SP
Mitte Inquisitionem
PDF Download
Qualitas altusGIGABIT Network Transformeroffertur a fabrica Sinarum IASN. BuyGIGABIT Network Transformerquod est optimum directe parvo pretio.
Feature
Obsequium IEEE 802.3at vexillum.
Parere cum RoHS requisitis.
Apta ad applicationes cum720mA currentis capacitatis ad finem-spaniae PoE.
Temperatura operans range: 0â ad +70â.
Repono temperatus range: -25 ad +105â.
Electrical Specifications @ 25â
|
OCL: |
350uH Min. @100KHz/0.1V apud 8mA DC Bias |
||
|
Hi-pot : |
1500Vrms |
||
|
Vertit Rationem: |
1CT:1CT±3% |
||
|
LK: |
0.5uH Max @100KHz/0.2V |
||
|
Cw/w* |
35pF Max @100KHz/0.2V |
||
|
D.C.R: |
1.2 olim Max |
||
|
Damnum insertio: |
1-100MHz: -1.0dB Max |
||
|
Cross Talk: |
1-100MHz: -30dB Min |
||
|
Redi damnum: |
1-40MHz |
40-80MHz |
100MHz |
|
-16dB Min |
-10+20log(f/80)dB Min |
-10dB Min |
|
Hot Tags: GIGABIT Network Transformer, Sinis, Suppliers, Manufacturers, Factory, Lorem, Free Sample, Newest, Eme, Cheap, Quotation
Related Categoria
10/100Base-T Magneticorum modulorum
1000Base-T Magnetics Modules
2.5GBase-T Magnetics Modules
5GBase-T Magnetics Modules
10GBase-T Magnetics Modules
18GBase-T Magnetics Modules
Vehiculum Lan components
