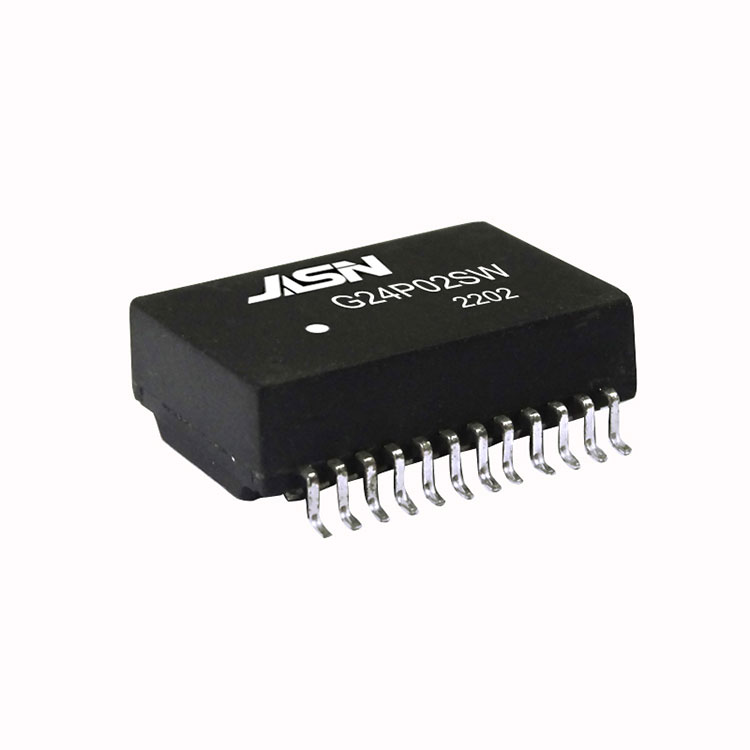

GIGABIT Pulsus Transformer
JASN princeps professionalis Sinarum GIGABIT Transformator Pulsus opificem magna qualitate et rationabili pretio. Grata cum nostro contactu. Noster GIGABIT Pulsus Trans pristina munera perfecta et praestantia observantia praebet. PN G24P02SW obsequitur cum IEEE 802.3ab vexillo et altitudo 4.0mm typ.
Exemplar:G24P02SW
Model:G24P02SW
Mitte Inquisitionem
PDF Download
Jasn est Sinis manufacturer & elit, qui maxime producitGIGABIT Pulsus Transformerphiribus annis usus. Spero te aedificare negotium necessitudinem.
Feature
Obsequium IEEE 802.3ab vexillum.
Parere cum RoHS requisitis.
Apta ad finem-span PoE applicationes cum 600mA current facultatem
Temperatura operans range: -40â ad +85â.
Repono temperatus range: -25 ad +105â.
Electrical Specifications @ 25â
|
OCL: |
350uH Min. @100KHz/0.1V apud 8mA DC Bias |
||||
|
Hi-POT : |
1500Vrms |
||||
|
Turn Ratio: |
1:1±3% |
||||
|
LK: |
0.5uH Max @100KHz/0.2V |
||||
|
Cw/w* |
35PF Max @100KHz/0.2V |
||||
|
D.C.R: |
1.2 olim Max |
||||
|
Damnum insertio: |
1-100MHz: -1.0dB Max |
||||
|
Cross Talk: |
1-100MHz: -30dB Min |
||||
|
Redi damnum: |
1-30MHz |
40MHz |
50MHz |
60-80MHZ |
80-100MHZ |
|
-18dB Min |
-14.4dB Min |
-13.1dB Min |
-12dB Min |
-10dB Min |
|
Hot Tags: GIGABIT Pulsus Transformer, Sinis, Suppliers, Manufacturers, Factory, Lorem, Free Sample, Novissimum, Eme, Cheap, Quotation
Related Categoria
10/100Base-T Magneticorum modulorum
1000Base-T Magnetics Modules
2.5GBase-T Magnetics Modules
5GBase-T Magnetics Modules
10GBase-T Magnetics Modules
18GBase-T Magnetics Modules
Vehiculum Lan components
