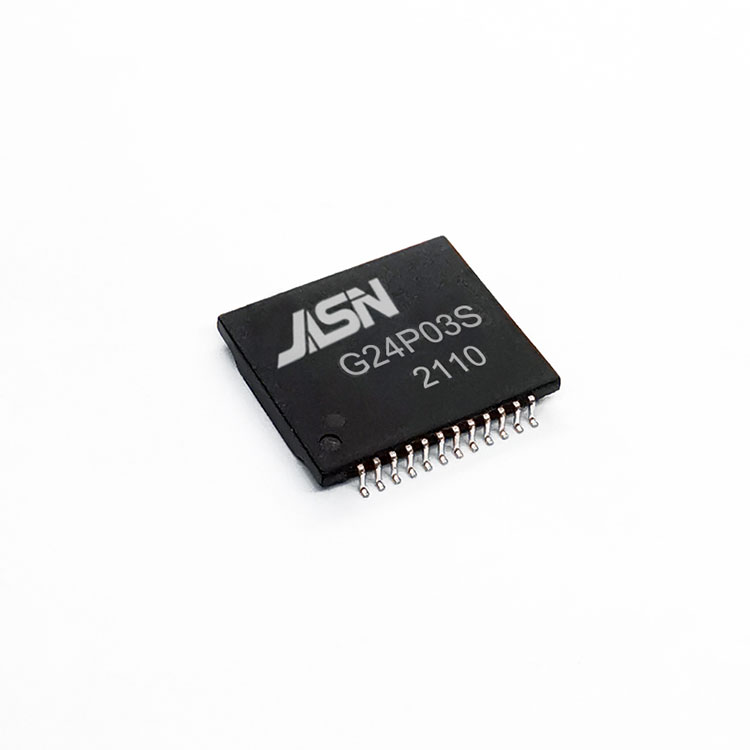

GIGABIT signum Transformer
Pretium officinas emere potes GIGABIT Signi Transformantis ex certo Sinarum Transformator fabricator. PN G24P03S ultra low constructionem productum est et optionem clavum variam ad extensionem habet.
Exemplar:G24P03S
Exemplar:G24P03S
Model:G24P03S
Mitte Inquisitionem
PDF Download
Find ingens electioGIGABIT signum Transformerex China apud JASN. Praebere professionalem post-venditionem servitium et pretium ius, cooperationem expectamus.
Feature
Obsequium IEEE 802.3ab vexillum.
Obsequi ROHS requisitis.
Temperatura operans range: 0â ad +70â.
Repono temperatus range: -25 ad +125â.
Electrical Specifications @ 25â
|
OCL: |
350uH Min. @100KHz/0.1V |
||||
|
Hi-POT : |
1500Vrms |
||||
|
Turn Ratio: |
1:1±3% |
||||
|
LK: |
0.5uH Max @100KHz/0.2V |
||||
|
Cw/w* |
35PF Max @100KHz/0.2V |
||||
|
D.C.R: |
1.2 olim Max |
||||
|
Damnum insertio: |
1-100MHz: -1.0dB Max |
||||
|
Cross Talk: |
1-100MHz: -30dB Min |
||||
|
Redi damnum: |
1-30MHz |
40MHz |
50MHz |
60-80MHZ |
80-100MHZ |
|
-18dB Min |
-14.4dB Min |
-13.1dB Min |
-12dB Min |
-10dB Min |
|
