Lan Transformer

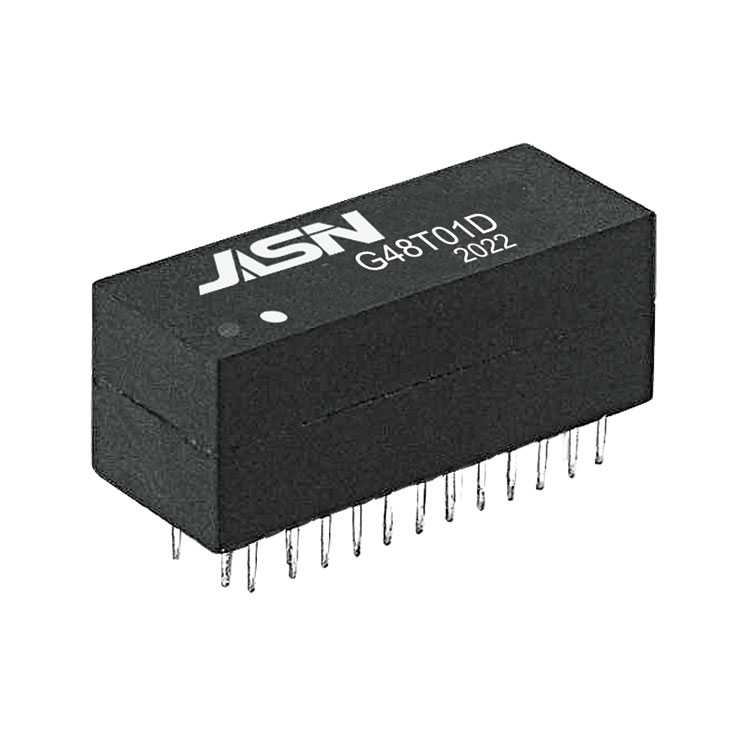

IASN ut professionalis Lan Transformer fabricator, certificare potes ex officina nostra Lan Transformer emere et tibi optimam post venditionem operae et partus opportune offeremus. PN G48T01D est 10/100/1000 BASIS-T Dual Portus Magneticorum Module.
Exemplar:G48T01D
Exemplar:G48T01D
mitte Inquisitionis
PDF Download
Gratus es venire ad officinam IASN ut emendum novissimam venditionem, vili pretio, et qualitatemLan Transformer. Expectamus cooperante.
Feature
Obsequium IEEE 802.3ab vexillum.
Obsequi ROHS requisitis.
Temperatura operans range: 0â ad +70â.
Repono temperatus range: -25 ad +105â.
Electrical Specifications @ 25â
|
OCL: |
350uH Min. @100KHz/0.1V apud 8mA DC Bias |
||||
|
Hi-POT : |
1500Vrms |
||||
|
Turn Ratio: |
1:1±3% |
||||
|
LK: |
0.5uH Max @100KHz/0.2V |
||||
|
Cw/w* |
35PF Max @100KHz/0.2V |
||||
|
D.C.R: |
1.2 olim Max |
||||
|
Damnum insertio: |
1-100MHz: -1.0dB Max |
||||
|
Cross Talk: |
1-100MHz: -30dB Min |
||||
|
Redi damnum: |
1-30MHz |
40MHz |
50MHz |
60-80MHZ |
80-100MHZ |
|
-18dB Min |
-14.4dB Min |
-13.1dB Min |
-12dB Min |
-10dB Min |
|
