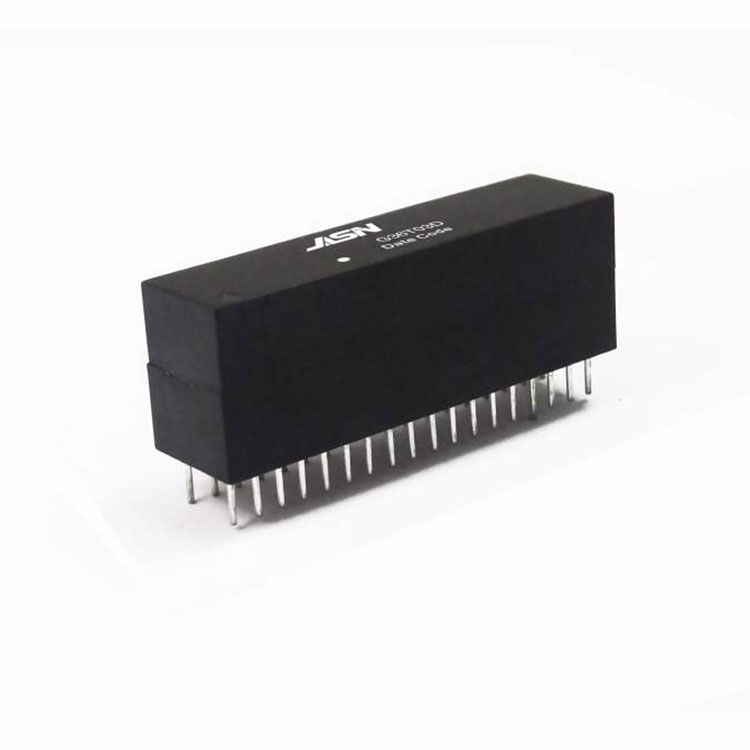

Network Transformer

Transformator noster Network perfecta munera offert ac superior effectus. PN G36T03D obtemperat cum vexillo IEEE 802.3ab et Rohs obsequens.

Exemplar: G36T03D
Model:G36T03D

Mitte Inquisitionem

PDF Download

IASN ut opificem professionalem, volumus tibi dare qualitatem altamNetwork Transformer. Et offeremus tibi optimam post venditionem servitii et opportunam traditionem.


Feature


Obsequium IEEE 802.3 vexillum.
Obsequi ROHS requisitis.
Temperatura operans range: 0℃ ad +70℃.
Repono temperatus range: -25„ƒ ad +125℃.


Electrical Specifications @ 25℃


OCL:

350uH Min. @100KHz/0.1V apud 8mA DC Bias

Hi-POT :

1500Vrms

Turn Ratio:

1:1±3%

LK:

0.5uH Max @100KHz/0.2V

Cw/w*

120PF Max @100KHz/0.2V

D.C.R:

1.2 olim Max

Damnum insertio:

1-100MHz: -1.0dB Max

Cross Talk:

1-100MHz: -30dB Min



Redi damnum:

1-30MHz

40MHz

50MHz

60-80MHZ

80-100MHZ

-18dB Min

-14.4dB Min

-13.1dB Min

-12dB Min

-10dB Min
