10/100Base-T Lan Magneticorum
10/100Base-T Lan Magneticorum
Optima qualitas 10/100Base-T Magneticorum Lan a fabrica Sinarum oblatum est. PN H16C81S clavum electionis diversum praebet.

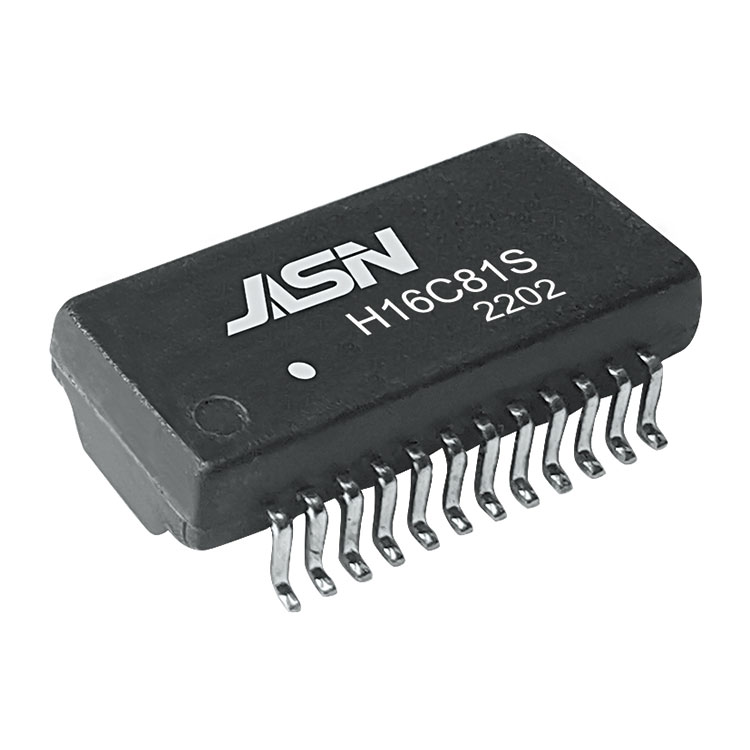

Exemplar: H16C81S
Model:H16C81S
Mitte Inquisitionem
PDF Download
Certum emere potes10/100Base-T Lan Magneticorumex officina JASN et tibi optimam post venditionem praestabimus et opportune partus offeremus.
Obsequium IEEE 802.3u vexillum.
Parere cum RoHS requisitis.
Temperatura operans range: 0â ad +70â.
Repono temperatus range: -25 ad +125â.
Feature
Obsequium IEEE 802.3u vexillum.
Parere cum RoHS requisitis.
Temperatura operans range: 0â ad +70â.
Repono temperatus range: -25 ad +125â.
Electrical Specifications @ 25â
|
OCL: |
350uH Min. @100KHz/0.1V apud 8mA DC Bias |
||||
|
Hi-POT : |
1500VAC 1mA 2S |
||||
|
Turn Ratio: |
1:1±3% |
||||
|
LK: |
0.5uH Max @100KHz/0.2V |
||||
|
Cw/w* |
35PF Max @100KHz/0.2V |
||||
|
D.C.R: |
1.2 olim Max |
||||
|
Damnum insertio: |
1-100MHz: -1.0dB Max |
||||
|
Cross Talk: |
1-100MHz: -30dB Min |
||||
|
Redi damnum: |
1-30MHz |
40MHz |
50MHz |
60-80MHz |
80-100MHz |
|
-18dB Min |
-14.4dB Min |
-13.1dB Min |
-12dB Min |
-10dB Min |
|
