10/100Base-T Pulsus Transformer

IASN est pulsus professionalis fabricator, certificare potes emere X/100Base-T Pulsus Transformator ex officina nostra facillima tibi offeremus optima post venditionem et opportuna traditio. In PN H16C01SW industriam temp application.JASN Pars numeri Crucis Reference: Pulsus PN HX1188NL

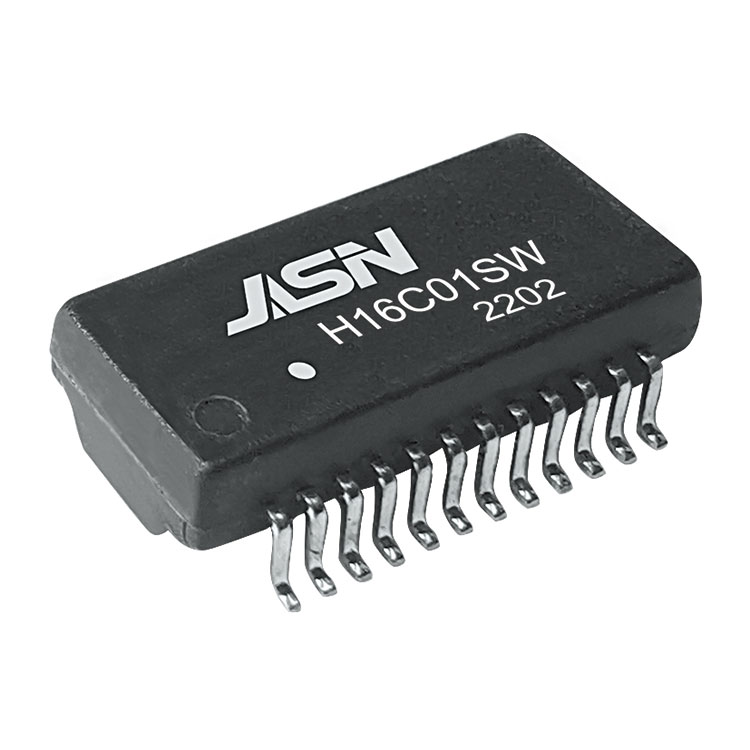

Exemplar: H16C01SW

Model:H16C01SW

PDF Download

depictio producti

JASN ut fabrica professionalis, velimus tibi providere10/100Base-T Pulsus Transformer. Et offeremus tibi optimam post venditionem servitii et opportunam traditionem.

Feature

Obsequium IEEE 802.3u vexillum.
Parere cum RoHS requisitis.
Apta ad finem-span PoE applicationes cum 350mA current facultatem
Temperatura operans range: -40â ad +85â.
Repono temperatus range: -40â ad +105â.

Electrical Specifications @ 25â

OCL:	350uH Min. @100KHz/0.1V apud 8mA DC Bias
Hi-POT :	1500VAC 1mA 2S
Turn Ratio:	1:1±3%
LK:	0.5uH Max @100KHz/0.2V
Cw/w*	35PF Max @100KHz/0.2V
D.C.R:	1.2 olim Max
Damnum insertio:	1-100MHz: -1.0dB Max
Cross Talk:	1-100MHz: -30dB Min
Redi damnum:	1-30MHz	40MHz	50MHz	60-80MHz	80-100MHz
	-18dB Min	-14.4dB Min	-13.1dB Min	-12dB Min	-10dB Min
