100M Magnetics Modules
Optima 100M Magneticorum Modulorum a Sinae fabrica JASN offertur. PN H40C01S optionem DUAL portus sustinere potest.

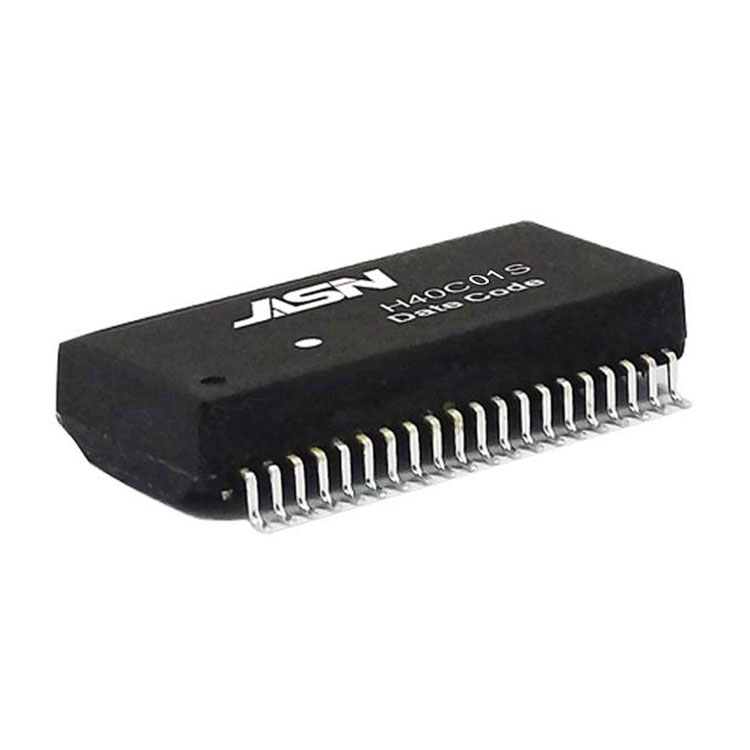

Exemplar: H40C01S
Model:H40C01S
Mitte Inquisitionem
PDF Download
JASN sicut unus de Sinis professionalibus100M Magnetics Modulesmanufacturers et Sina100M Magnetics Modulesofficinas, validas vires et administratione plenas sumus. Item habemus licentiam propria educendi. Nos maxime agere in seriem100M Magnetics Moduleset sic porro. Inhaeremus principali qualitatis orientationis ac prioritati emptoris, litteras vestras, vocat et inquisitiones pro cooperatione negotiorum sincero animo suscipimus. Confirmamus tibi celsitudinis nostre officia in omni tempore.
Feature
Obsequium IEEE 802.3 vexillum.
Obsequi ROHS requisitis.
Temperatura operans range: 0â ad +70â.
Repono temperatus range: -25 ad +125â.
Electrical Specifications @ 25â
|
OCL: |
350uH Min. @100KHz/0.1V apud 8mA DC Bias |
||||
|
Hi-POT : |
1500Vrms |
||||
|
Turn Ratio: |
1:1±3% |
||||
|
LK: |
0.5uH Max @100KHz/0.2V |
||||
|
Cw/w* |
65PF Max @100KHz/0.2V |
||||
|
D.C.R: |
1.2 olim Max |
||||
|
Damnum insertio: |
1-100MHz: -1.0dB Max |
||||
|
Cross Talk: |
1-100MHz: -30dB Min |
||||
|
Redi damnum: |
1-30MHz |
40MHz |
50MHz |
60-80MHZ |
80-100MHZ |
|
-18dB Min |
-14.4dB Min |
-13.1dB Min |
-12dB Min |
-10dB Min |
|
Hot Tags: 100M Magnetics Modules, China, Suppliers, Manufacturers, Factory, customised, Free Sample, Newest, Eme, Cheap, Quotation
Product Tag
Related Categoria
10/100Base-T Magneticorum modulorum
1000Base-T Magnetics Modules
2.5GBase-T Magnetics Modules
5GBase-T Magnetics Modules
10GBase-T Magnetics Modules
18GBase-T Magnetics Modules
Vehiculum Lan components
