10/100Base-T Signum Transformer

JASN primarius Sinarum est 10/100Base-T Transformator signum opificem, supplementum et exportatorem. PN H16C73SW ordinatur ad IEEE 802.3u vexillum et cum omnibus maioribus PHYs compatible applicate ad 10/100M celeritatem rate et aptam ad -40°C ad +85°C applicationem.

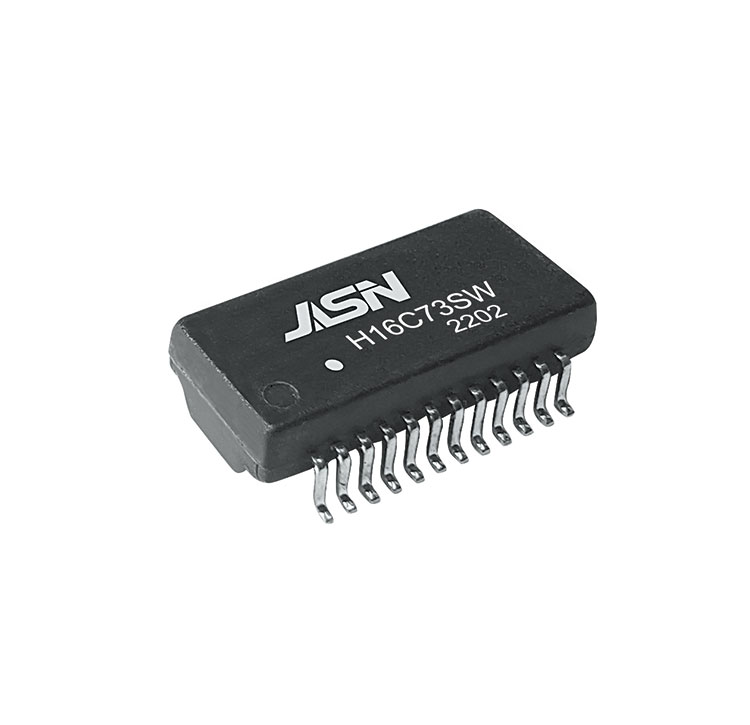

Exemplar: H16C73SW

Model:H16C73SW

Ut sit amet10/100Base-T Signum Transformermanufacturer, vos can quiescamus emere10/100Base-T Signum Transformerex officina JASN et tibi optimam post venditionem praestabimus et opportune partus offeremus.

Feature

Obsequium IEEE 802.3 vexillum.
Obsequi ROHS requisitis.
Sustinet 2pairs generis 5 UTP cable
Temperatura operans range: -40â ad +85â.
Repono temperatus range: -25 ad +105â.

Electrical Specifications @ 25â

OCL:	350uH Min. @100KHz/0.1V apud 8mA DC Bias
Hi-POT :	1500VAC
Turn Ratio:	1:1±3%
LK:	0.5uH Max @100KHz/0.2V
Cw/w*	28PF Max @100KHz/0.2V
D.C.R:	1.2 olim Max
Damnum insertio:	1-100MHz: -1.0dB Max
Cross Talk:	30MHz		60MHz		100MHz
	-45dB Min		-38dB Min		-33dB Min
Redi damnum:	1-30MHz	40-50MHz		60-80MHz		100MHZ
	-16dB Min	-13dB Min		-11dB Min		-10dB Min
D.C.M.R:	30MHz		60MHz		100MHz
	-43dB Min		-37dB Min		-33dB Min
