100M Aer Transformer
  • 100M Aer Transformer - 0 100M Aer Transformer - 0

100M Aer Transformer

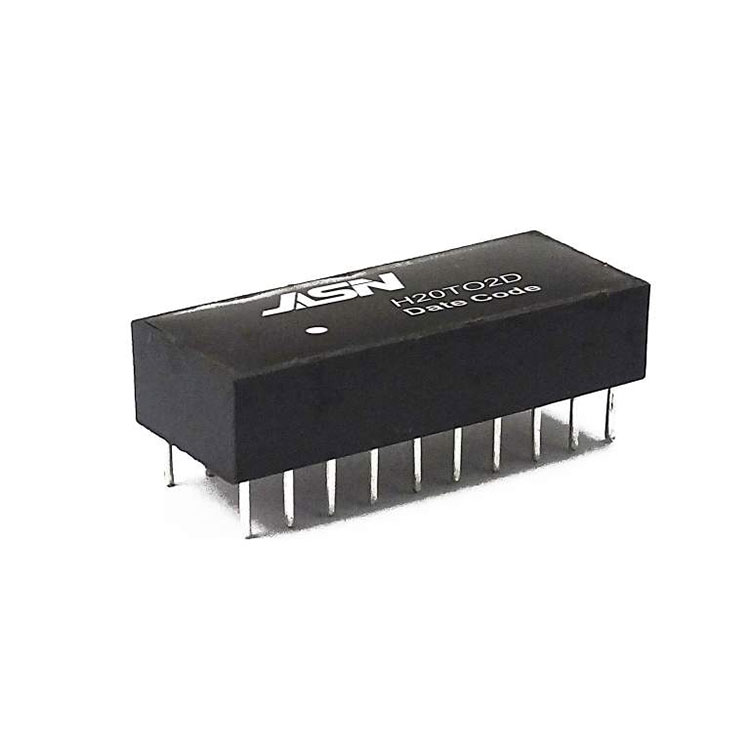

Qualitas princeps 100M Transformator Ethernet a Sinis fabricare IASN Electronics offertur. H20T02D parva mensura est DIP 20Pin Seires.

Exemplar: H20T02D

Model:H20T02D

Mitte Inquisitionem

PDF Download

Jasn est princeps professionalis Sinis100M Aer Transformermanufacturer magna qualitas et rationabile pretium. Welcome to contact us.


Feature


Obsequium IEEE 802.3u vexillum.
Parere cum RoHS requisitis.
Temperatura operans range: 0℃ ad +70℃.
Repono temperatus range: -25„ƒ ad +105℃.


Electrical Specifications @ 25℃



OCL:

350uH Min. @100KHz/0.1V apud 8mA DC Bias

Hi-POT :

1500Vrms

Turn Ratio:

1:1±3%

LK:

0.5uH Max @100KHz/0.2V

Cw/w*

65PF Max @100KHz/0.2V

D.C.R:

1.2 olim Max

Damnum insertio:

1-100MHz: -1.0dB Max

Cross Talk:

1-100MHz: -30dB Min



Redi damnum:

1-30MHz

40MHz

50MHz

60-80MHZ

80-100MHZ

-18dB Min

-14.4dB Min

-13.1dB Min

-12dB Min

-10dB Min
