100M Lan Transformer
  • 100M Lan Transformer - 0 100M Lan Transformer - 0

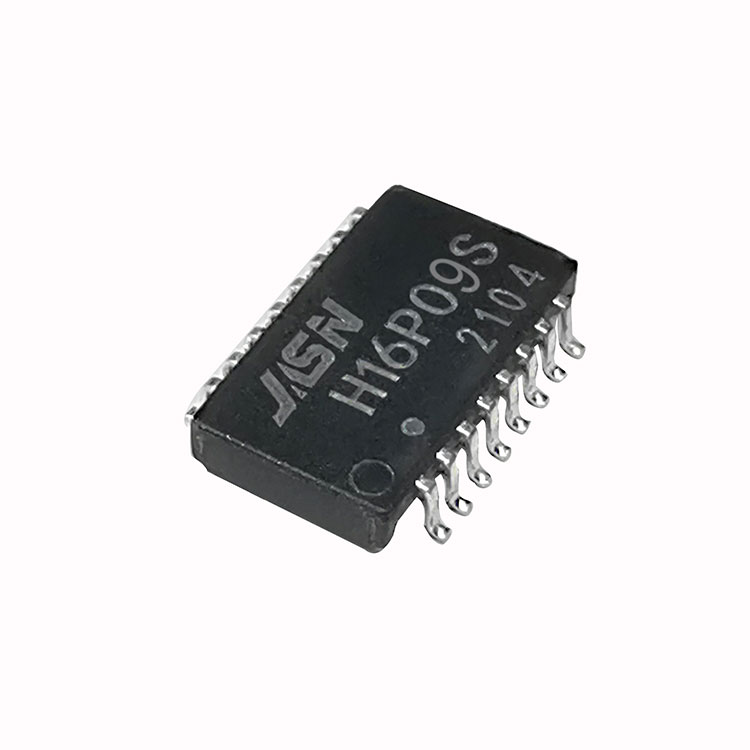

100M Lan Transformer

Gratus es venire ad officinam JASN ut emendum novissimam venditionem, parvo pretio, et qualitatem 100M Lan Transformer. Expectamus cooperari cum you.This H16P09S est ultra low structuram seriem producti.

Exemplar: H16P09S

Model:H16P09S

Mitte Inquisitionem

PDF Download

IASN ut opificem professionalem, volumus tibi dare qualitatem altam100M Lan Transformer. Et offeremus tibi optimam post venditionem servitii et opportunam traditionem.


Feature


Obsequium IEEE 802.3u vexillum.
Parere cum RoHS requisitis.
Temperatura operans range: 0℃ ad +70℃.
Repono temperatus range: -25„ƒ ad +105℃.


Electrical Specifications @ 25℃



OCL:

350uHMin.@100KHz/0.1V

Hi-POT:

1500VAC1mA2S

TurnRatio:

1:1±3%

LK:

0.5uHMax@100KHz/0.2V

Cw/w*

28pFMax@100KHz/0.2V

D.C.R:

1.iohm Max

InsertionLoss:

1-100MHz: -1.1dBMax

CrossTalk:

1-100MHz: -30dBMin



ReturnLoss:

1-30MHz

40MHz

50MHz

60-80MHz

80-100MHz

-18dBMin

-14.4dBMin

-13.1dBMin

-12dBMin

-10dBMin
