100M Network Transformer
100M Network Transformer
IASN sicut unus ex professionalibus Sinarum 100M fabricatores Network Transformator et officinas Sinarum, validi sumus vires et administratio perfecta. H16P07S ultra low structura producti series et altitudo 2.20mm typ.

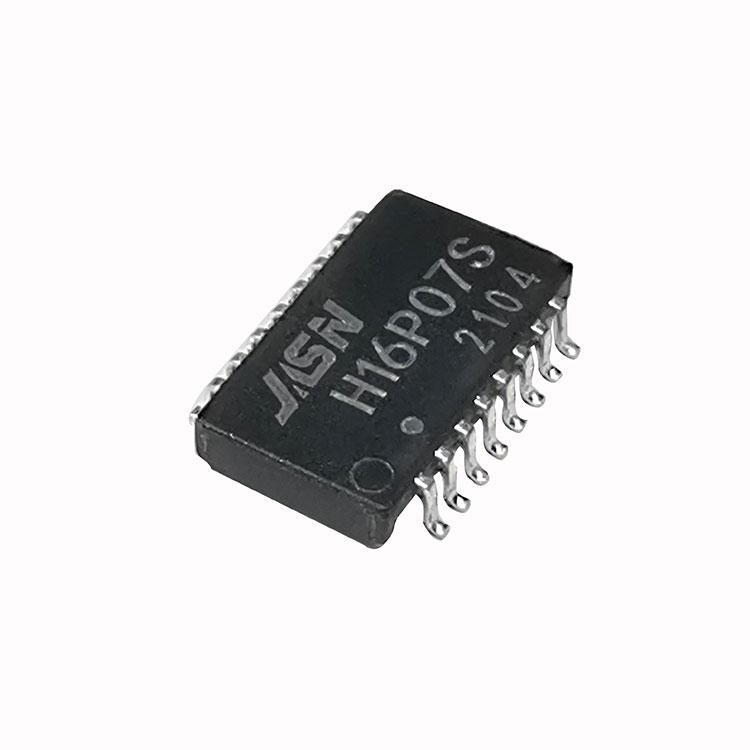

Exemplar: H16P07S
Model:H16P07S
Mitte Inquisitionem
PDF Download
JASN sicut professionalis princeps qualitas100M Network Transformermanufacturer, vos can quiescamus emere100M Network Transformerex officina nostra, et optimam post venditionem tibi offeremus et opportunam traditionem.
Feature
Obsequium IEEE 802.3 vexillum.
Obsequi ROHS requisitis.
Temperatura operans range: 0â ad +70â.
Repono temperatus range: -25 ad +125â.
Electrical Specifications @ 25â
|
OCL: |
350uH Min. @100KHz/0.1V |
||||
|
Hi-POT : |
1500Vrms |
||||
|
Turn Ratio: |
1:1±3% |
||||
|
LK: |
0.5uH Max @100KHz/0.2V |
||||
|
Cw/w* |
35PF Max @100KHz/0.2V |
||||
|
D.C.R: |
1.2 olim Max |
||||
|
Damnum insertio: |
1-100MHz: -1.0dB Max |
||||
|
Cross Talk: |
1-100MHz: -30dB Min |
||||
|
Redi damnum: |
1-30MHz |
40MHz |
50MHz |
60-80MHZ |
80-100MHZ |
|
-18dB Min |
-14.4dB Min |
-13.1dB Min |
-12dB Min |
-10dB Min |
|
