100M Signum Transformer
JASN signum est praecipuum Transformatoris opificem, qui Investigationem, Progressionem, Vestibulum ac Sales integrat. H20T01D mensura mensurae DIP 20Pin Series et 100M signum Transformatoris celeritatem rate prodere potest.

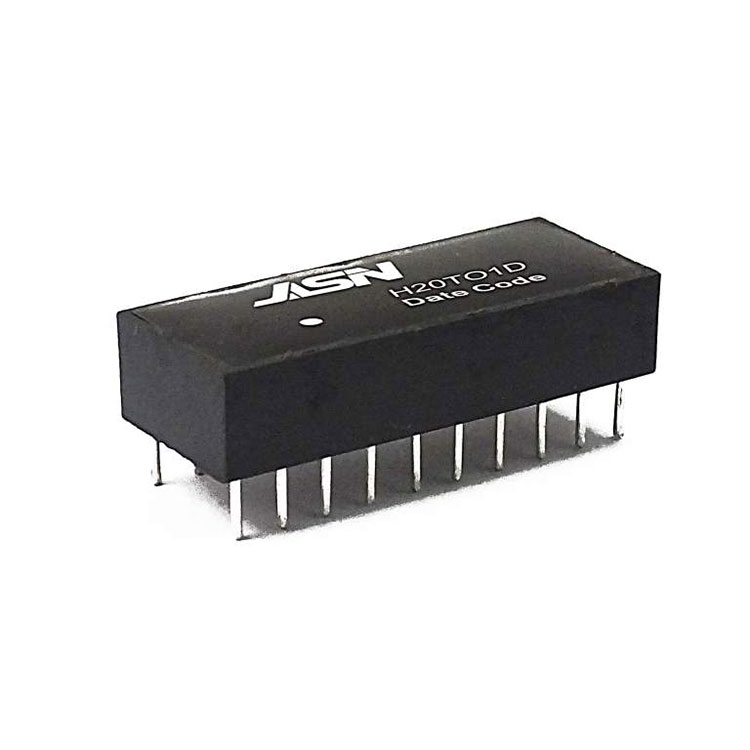

Exemplar: H20T01D
Model:H20T01D
Mitte Inquisitionem
PDF Download
Cum annos experientia in productionem100M Signum Transformer, JASN amplis supplere potest100M Signum Transformer. Qualitas altus100M Signum Transformermultae applicationes occurrere, si opus sit, accipe ministerium nostrum opportune de online100M Signum Transformer. Praeter indicem productum infra, domicilii tui etiam proprium singulare est100M Signum Transformesecundum necessitates tuas r.
Feature
Obsequium IEEE 802.3u vexillum.
Parere cum RoHS requisitis.
Temperatura operans range: 0â ad +70â.
Repono temperatus range: -25 ad +105â.
Electrical Specifications @ 25â
|
OCL: |
350uH Min. @100KHz/0.1V apud 8mA DC Bias |
||||
|
Hi-POT : |
1500Vrms |
||||
|
Turn Ratio: |
1:1±3% |
||||
|
LK: |
0.5uH Max @100KHz/0.2V |
||||
|
Cw/w* |
65PF Max @100KHz/0.2V |
||||
|
D.C.R: |
1.2 olim Max |
||||
|
Damnum insertio: |
1-100MHz: -1.0dB Max |
||||
|
Cross Talk: |
1-100MHz: -30dB Min |
||||
|
Redi damnum: |
1-30MHz |
40MHz |
50MHz |
60-80MHZ |
80-100MHZ |
|
-18dB Min |
-14.4dB Min |
-13.1dB Min |
-12dB Min |
-10dB Min |
|
